S/T Z04

S/T Z04

BRAND : FALKEN
SERIES : 4WD SUV Tires
MODEL : S/T Z04
PRODUCT DETAILS :

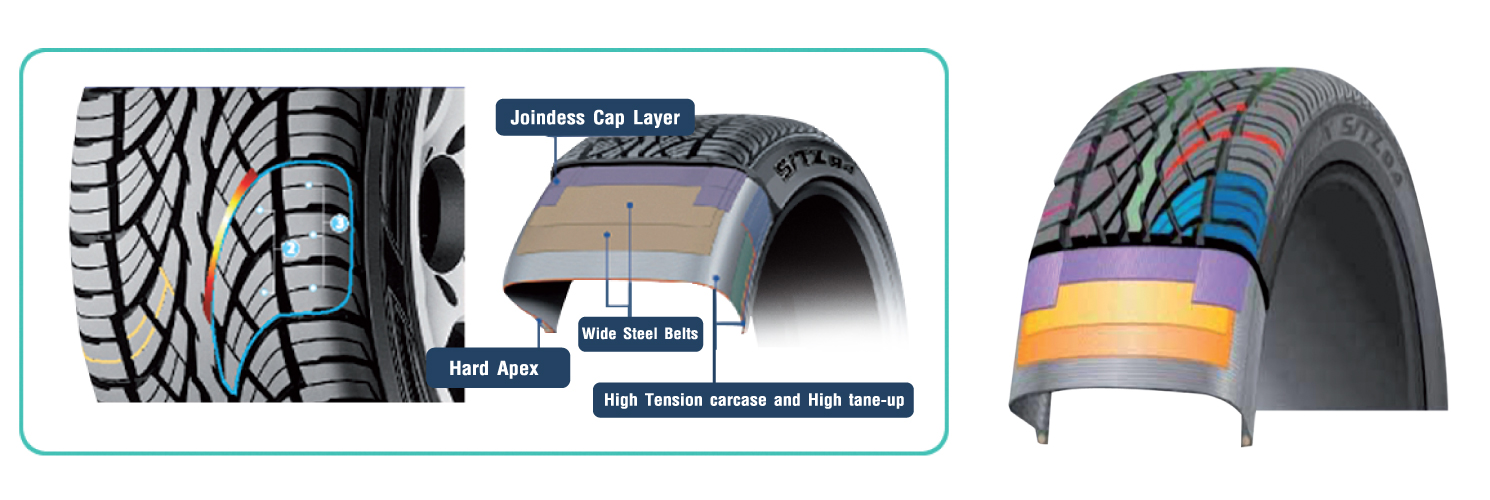

The tread cross section is curved and wide, helping to control the balance while driving straight and cornering.
The tread has a wavy shape and has 4 wide grooves to help improve water drainage as well.
Suitable for highway and paved road use

Size	LI	XL or RF	Sidewall Style	Overall Diam. (mm)	Section width (mm)	Rim Width		Tread Depth (mm)
Size	LI	XL or RF	Sidewall Style	Overall Diam. (mm)	Section width (mm)	Muasuring (inch)	Approved (inch)	Tread Depth (mm)
P 255 /70 R15	108S		OWL	743	261	7.5	6.5 - 8.5	9.8
30X 9.50 R15	104Q		OWL	745	242	7.5	6.5 - 8.5	12.2
31X 10.50 R15LT	109S		OWL	770	274	8.5	7.0 - 9.0	12.4
LT 235 /75 R15	104/101Q		OWL	745	237	6.5	6.0 - 8.0	12.4
P 225 /65 R16	106S			744	250	7.5	7.0 - 9.0	9.8
P 215 /70 R16	99S			711	217	8.0	7.0 - 9.0	9.4
P 265 /70 R16	111S		OWL	783	270	8.0	7.0 - 9.0	9.9
275 /70 R16	114S		OWL	794	278	8.0	7.0 - 9.0	10.2
P 245 /75 R16	109S		OWL	777	252	7.0	6.5 - 8.0	10.2
265 /65 R17	112H		OWL	776	275	8.0	7.5 - 9.5	9.9
275 /65 R17	115H		OWL	793	285	8.0	7.5 - 9.5	10.4
P 275 /45 R20	106H			757	265	9.0	8.5 - 10.0	10.0
275 /55 R20	117H	O		814	282	8.5	7.5 - 9.5	11.0
P 305 /45 R22		O		829	305	10.0	9.5-11.5	10.8

* : ZIEX S/TZ01, ** : LA/T110
RF : Reinforced tires XL : Extra load TL : Tubeless tires MFS : Max flange shield (Rim protection feature) O : Conforms to E.C.E Regulation NO.30
