Size	LI	XL or RF	Overall Diam. (mm)	Section width (mm)	Rim Width		Tread Depth (mm)
Size	LI	XL or RF	Overall Diam. (mm)	Section width (mm)	Muasuring (inch)	Approved (inch)	Tread Depth (mm)
185 /60 R14	82H		579	186	5.5	5.0 - 6.0	7.9
195 /60 R14	86H		592	199	6.0	5.5 - 7.0	8.0
185 /65 R14	86H		596	190	5.5	5.0 - 6.5	7.9
195 /65 R14	89H		611	203	6.0	5.5 - 7.0	8.0
195 /50 R15	82V		580	197	6.0	5.5 - 7.0	7.8
205 /50 R15	86V		589	212	6.5	5.5 - 7.5	7.9
225 /50 R15	91V		610	231	7.0	6.0 - 8.0	8.1
205 /55 R15	88V		610	213	6.5	5.5 - 7.5	7.9
175 /60 R15	81H		595	170	5.0	5.0 - 6.0	7.8
185 /60 R15	84H		604	186	5.5	5.0 - 6.5	7.9
195 /60 R15	88H		617	198	6.0	5.5 - 7.0	8.0
205 /60 R15	91H		629	205	6.0	5.5 - 7.5	8.1
215 /60 R15	94H		640	221	6.5	6.0 - 7.5	8.1
225 /60 R15	96H		653	223	6.5	6.0 - 8.0	8.1
175 /65 R15	84H		612	176	5.0	5.0 - 6.0	7.8
185 /65 R15	88H		623	187	5.5	5.0 - 6.5	7.9
195 /65 R15	91H		636	201	6.0	5.5 - 7.0	8.0
205 /65 R15	94H		648	209	6.0	5.5 - 7.5	8.1
215 /65 R15	96H		663	221	6.5	6.0 - 7.5	8.1
205 /40 R16	83H	O	571	214	7.5	7.0 - 8.0	7.9
215 /40 R16	86W	O	579	218	7.5	7.0 - 8.5	8.0
205 /45 R16	87V	O	594	206	7.0	6.5 - 7.5	7.9
195 /50 R16	84V		604	198	6.0	5.5 - 7.0	7.8
205 /50 R16	87V		615	211	6.5	5.5 - 7.5	7.9
215 /50 R16	90V		628	221	7.0	6.0 - 7.5	8.0
225 /50 R16	96V	O	633	230	7.0	6.0 - 8.0	8.1
185 /55 R16	83V		613	193	6.0	5.0 - 6.5	7.7
205 /55 R16	91V		635	213	6.5	5.5 - 7.5	7.9
225 /55 R16	95V		656	233	7.0	6.0 - 8.0	8.1
205 /60 R16	92H		653	204	6.0	5.5 - 7.5	8.1
215 /60 R16	99H	O	665	215	6.5	6.0 - 7.5	8.1
225 /60 R16	98H		677	222	6.5	6.0 - 8.0	8.1
235 /60 ZR16	100W		689	237	7.0	6.5 - 8.5	8.1
205 /65 R16	95V		672	208	6.0	5.5 - 7.5	8.1
215 /65 R16	98H		688	221	6.5	6.0 - 7.5	8.1
225 /65 R16	100H		700	228	6.5	6.0 - 8.0	8.1
235 /65 R16	103H		714	242	7.0	6.5 - 8.5	8.1
195 /40 R17	81W	O	591	200	7.0	6.5 - 7.5	7.8
205 /40 ZR17	84W	O	595	213	7.5	7.0 - 8.0	7.9
215 /40 ZR17	87W	O	608	217	7.5	7.0 - 8.5	8.0
195 /45 R17	85W	O	610	192	6.5	6.0 - 7.5	7.8
205 /45 ZR17	88W	O	619	206	7.0	6.5 - 7.5	7.9
215 /45 ZR17	91W	O	630	210	7.0	7.0 - 8.0	8.0
225 /45 ZR17	94W	O	638	224	7.5	7.0 - 8.5	8.1
235 /45 ZR17	94W		648	238	8.0	7.5 - 9.0	8.1
245 /45 ZR17	95W		657	241	8.0	7.5 - 9.0	8.1
215 /50 R17	91V		653	220	7.0	6.0 - 7.5	8.0
225 /50 R17	94V		665	228	7.0	6.0 - 8.0	8.1
225 /55 ZR17	101W	O	685	229	7.0	6.0 - 8.0	8.1
215 /60 R17	96H		692	217	6.5	6.0 - 7.5	8.1
225 /60 R17	99H		705	225	6.5	6.0 - 8.0	8.1
235 /60 R17	102H		716	239	7.0	6.5 - 8.5	8.1
215 /35 ZR18	84W	O	610	214	7.5	7.0 - 8.5	8.0
235 /35 ZR18	90W	O	623	241	8.5	8.0 - 9.5	8.1
225 /40 ZR18	92W	O	640	229	8.0	7.5 - 9.0	8.1
235 /40 ZR18	95W	O	648	243	8.5	8.0 - 9.5	8.1
215 /45 ZR18	93W	O	654	211	7.0	7.0 - 8.0	8.0
225 /45 ZR18	91W		664	223	7.5	7.0 - 8.5	8.1
235 /45 ZR18	94W		674	235	8.0	7.5 - 9.0	8.1
225 /50 R18	95W		688	227	7.0	6.0 - 8.0	8.1
215 /55 R18	95H		698	222	7.0	6.0 - 7.5	8.0
225 /55 R18	98H		709	231	7.0	6.0 - 8.0	8.1
255 /55 R18	110V	O	737	265	8.0	7.0 - 9.0	8.1
225 /60 R18	100H		731	224	6.5	6.0 - 8.0	8.1
265 /60 R18	110V		775	271	8.0	7.5 - 9.5	8.1

RF : Reinforced tires XL : Extra load TL : Tubeless tires MFS : Max flange shield (Rim protection feature) O : Conforms to E.C.E Regulation NO.30

Previous product

LINAM VAN01

Back to products

Next product

S366

ZE912

BRAND : FALKEN
SERIES : Passenger Tires
MODEL : ZE912
PRODUCT DETAILS :

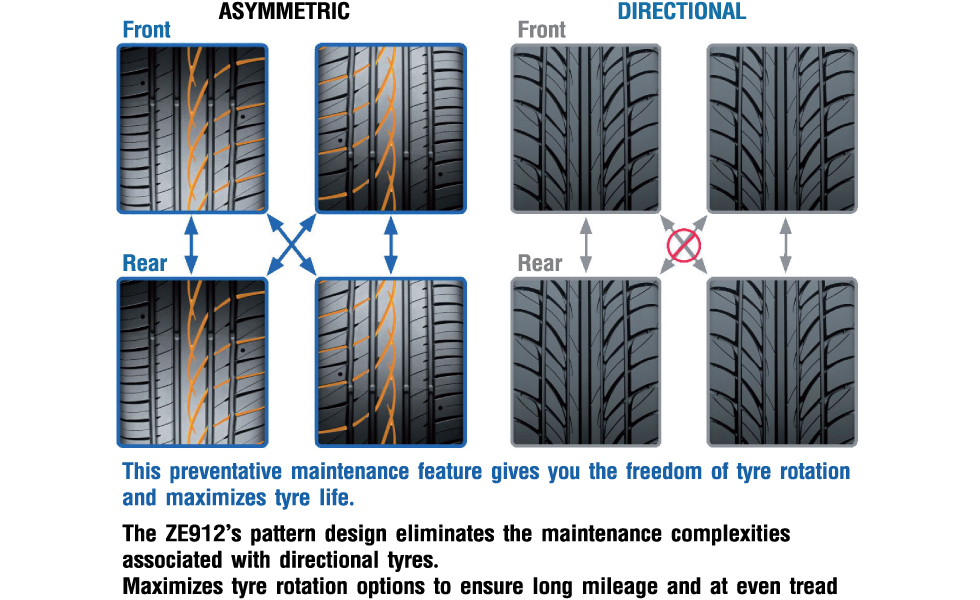

Asymmetric 5 rib pattern
Achieved higher grip on dry road thanks to asymmetric pattern where higher land ratio of outer blocks withstands increased load at cornering.
Wide and straight grooves
Efficient 4 straight and wide grooves located in tread area enhance such good wet performance as ZE512 (directional pattern)
Long lateral grooves in center
Laid out toward straight grooves, long lateral grooves contribute to clear water under center rib and achieved drainage equal to the ZE512 (directional pattern)
In tie-bar sipes/ Irregular wear control tie-bar
This new wet grip device depresses noise as well when wear proceeds. Tie-bars equipped just outside the contact patch suppress irregular wear.

Warranty Notice

Description

Size	LI	XL or RF	Overall Diam. (mm)	Section width (mm)	Rim Width		Tread Depth (mm)
Size	LI	XL or RF	Overall Diam. (mm)	Section width (mm)	Muasuring (inch)	Approved (inch)	Tread Depth (mm)
185 /60 R14	82H		579	186	5.5	5.0 - 6.0	7.9
195 /60 R14	86H		592	199	6.0	5.5 - 7.0	8.0
185 /65 R14	86H		596	190	5.5	5.0 - 6.5	7.9
195 /65 R14	89H		611	203	6.0	5.5 - 7.0	8.0
195 /50 R15	82V		580	197	6.0	5.5 - 7.0	7.8
205 /50 R15	86V		589	212	6.5	5.5 - 7.5	7.9
225 /50 R15	91V		610	231	7.0	6.0 - 8.0	8.1
205 /55 R15	88V		610	213	6.5	5.5 - 7.5	7.9
175 /60 R15	81H		595	170	5.0	5.0 - 6.0	7.8
185 /60 R15	84H		604	186	5.5	5.0 - 6.5	7.9
195 /60 R15	88H		617	198	6.0	5.5 - 7.0	8.0
205 /60 R15	91H		629	205	6.0	5.5 - 7.5	8.1
215 /60 R15	94H		640	221	6.5	6.0 - 7.5	8.1
225 /60 R15	96H		653	223	6.5	6.0 - 8.0	8.1
175 /65 R15	84H		612	176	5.0	5.0 - 6.0	7.8
185 /65 R15	88H		623	187	5.5	5.0 - 6.5	7.9
195 /65 R15	91H		636	201	6.0	5.5 - 7.0	8.0
205 /65 R15	94H		648	209	6.0	5.5 - 7.5	8.1
215 /65 R15	96H		663	221	6.5	6.0 - 7.5	8.1
205 /40 R16	83H	O	571	214	7.5	7.0 - 8.0	7.9
215 /40 R16	86W	O	579	218	7.5	7.0 - 8.5	8.0
205 /45 R16	87V	O	594	206	7.0	6.5 - 7.5	7.9
195 /50 R16	84V		604	198	6.0	5.5 - 7.0	7.8
205 /50 R16	87V		615	211	6.5	5.5 - 7.5	7.9
215 /50 R16	90V		628	221	7.0	6.0 - 7.5	8.0
225 /50 R16	96V	O	633	230	7.0	6.0 - 8.0	8.1
185 /55 R16	83V		613	193	6.0	5.0 - 6.5	7.7
205 /55 R16	91V		635	213	6.5	5.5 - 7.5	7.9
225 /55 R16	95V		656	233	7.0	6.0 - 8.0	8.1
205 /60 R16	92H		653	204	6.0	5.5 - 7.5	8.1
215 /60 R16	99H	O	665	215	6.5	6.0 - 7.5	8.1
225 /60 R16	98H		677	222	6.5	6.0 - 8.0	8.1
235 /60 ZR16	100W		689	237	7.0	6.5 - 8.5	8.1
205 /65 R16	95V		672	208	6.0	5.5 - 7.5	8.1
215 /65 R16	98H		688	221	6.5	6.0 - 7.5	8.1
225 /65 R16	100H		700	228	6.5	6.0 - 8.0	8.1
235 /65 R16	103H		714	242	7.0	6.5 - 8.5	8.1
195 /40 R17	81W	O	591	200	7.0	6.5 - 7.5	7.8
205 /40 ZR17	84W	O	595	213	7.5	7.0 - 8.0	7.9
215 /40 ZR17	87W	O	608	217	7.5	7.0 - 8.5	8.0
195 /45 R17	85W	O	610	192	6.5	6.0 - 7.5	7.8
205 /45 ZR17	88W	O	619	206	7.0	6.5 - 7.5	7.9
215 /45 ZR17	91W	O	630	210	7.0	7.0 - 8.0	8.0
225 /45 ZR17	94W	O	638	224	7.5	7.0 - 8.5	8.1
235 /45 ZR17	94W		648	238	8.0	7.5 - 9.0	8.1
245 /45 ZR17	95W		657	241	8.0	7.5 - 9.0	8.1
215 /50 R17	91V		653	220	7.0	6.0 - 7.5	8.0
225 /50 R17	94V		665	228	7.0	6.0 - 8.0	8.1
225 /55 ZR17	101W	O	685	229	7.0	6.0 - 8.0	8.1
215 /60 R17	96H		692	217	6.5	6.0 - 7.5	8.1
225 /60 R17	99H		705	225	6.5	6.0 - 8.0	8.1
235 /60 R17	102H		716	239	7.0	6.5 - 8.5	8.1
215 /35 ZR18	84W	O	610	214	7.5	7.0 - 8.5	8.0
235 /35 ZR18	90W	O	623	241	8.5	8.0 - 9.5	8.1
225 /40 ZR18	92W	O	640	229	8.0	7.5 - 9.0	8.1
235 /40 ZR18	95W	O	648	243	8.5	8.0 - 9.5	8.1
215 /45 ZR18	93W	O	654	211	7.0	7.0 - 8.0	8.0
225 /45 ZR18	91W		664	223	7.5	7.0 - 8.5	8.1
235 /45 ZR18	94W		674	235	8.0	7.5 - 9.0	8.1
225 /50 R18	95W		688	227	7.0	6.0 - 8.0	8.1
215 /55 R18	95H		698	222	7.0	6.0 - 7.5	8.0
225 /55 R18	98H		709	231	7.0	6.0 - 8.0	8.1
255 /55 R18	110V	O	737	265	8.0	7.0 - 9.0	8.1
225 /60 R18	100H		731	224	6.5	6.0 - 8.0	8.1
265 /60 R18	110V		775	271	8.0	7.5 - 9.5	8.1
